Categories | Time Switch |
Model | ATMS1601 |
Rated Voltage | 100-240VAC 50-60Hz |
Rated Current | 16A 250VAC(COSq=1) |
Contact configuration | 1NO(SPST-NO) |
WiFi Frequency | 2.4GHz |
Mounting | DIN Rail 35 mm(EN 60715) |
Ambient temperature range | -10℃...+60℃ |
●Program timer, can set 100 On/Off programs one day or per week.
●Count down time, from 1 Min to 23 hours 59 Mins.
●If the product is disconnected from the network, the timer retains all programs set up by Mobile App and works according to the set programs.
●With memory function, When the product contact is in the close state,after the power failure, and then call, the product contacts still keep the close state.
●Also can controlled by buttons from terminal A1 and A2.
●Can be share with 100 peoples by Mobile App.
Technical date
Rated Voltage: 100-240VAC 50-60Hz
Rated Current: 16A 250VAC(COSφ=1)
Contact configuration: 1NO(SPST-NO)
WiFi Frequency: 2.4GHz
Mounting: DIN Rail 35 mm(EN 60715)
Ambient temperature range: -10°C...+60°C

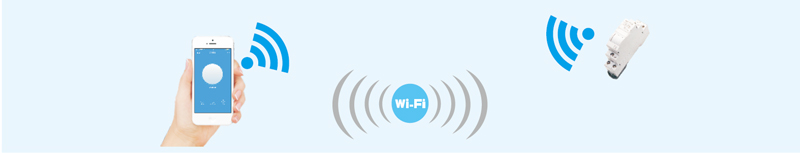

Control the timer by Mobile APP

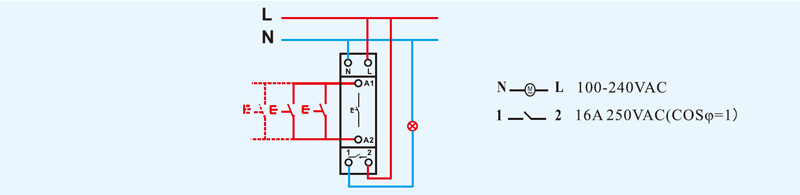

Connection Diagrams

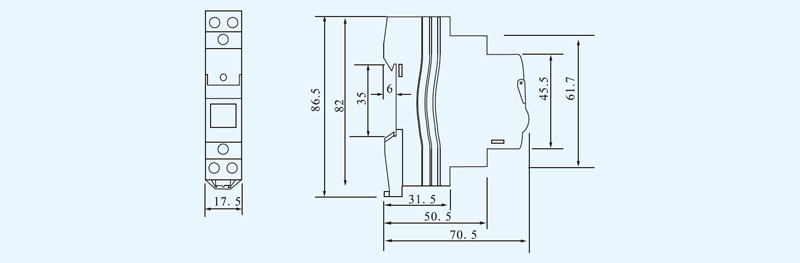

Dimensions
Video
