What is mccb and mcb?
In the intricate web of electrical systems that power our modern world, two devices stand as silent protectors, ensuring the safety and proper functioning of circuits: the Molded Case Circuit Breaker (MCCB) and the Miniature Circuit Breaker (MCB). These unassuming yet vital components play a crucial role in safeguarding electrical installations from potential disasters.
MCCB (Molded Case Circuit Breaker)
- Basic principle: It is a type of circuit breaker used to protect electrical circuits from overcurrent, short - circuit, and ground - fault conditions. It works by sensing the current flowing through the circuit and tripping the breaker when the current exceeds a certain predetermined value.
- Structure: MCCBs typically have a more complex structure compared to MCBs. They consist of a molded plastic case that encloses the electrical contacts, operating mechanism, and trip units. The trip units can be thermal - magnetic or electronic, which provide different types of protection.
- Applications: MCCBs are commonly used in low - voltage power distribution systems, such as in industrial plants, commercial buildings, and large - scale residential complexes. They are suitable for protecting circuits with higher current ratings, usually ranging from a few amperes to several thousand amperes. For example, they can be used to protect the main power supply to a factory or the distribution panels in a shopping mall.
JVL7-63 Electric Leakage Circuit Breaker Without Overcurrent Protection
MCB (Miniature Circuit Breaker)
- Basic principle: Similar to MCCBs, MCBs also protect circuits from overcurrent. They operate based on the thermal - magnetic effect. When the current through the MCB exceeds the rated value, the thermal element heats up and causes the bimetallic strip to bend, which then triggers the tripping mechanism. In the case of a short - circuit, the magnetic element quickly detects the large current and causes the breaker to trip instantaneously.
- Structure: MCBs are relatively small and compact, designed for single - pole or multi - pole applications. They have a simple construction with a plastic housing that contains the contact system, trip mechanism, and terminal connections.
- Applications: MCBs are widely used in residential and small - scale commercial electrical installations. They are used to protect individual circuits such as lighting circuits, power sockets, and small - appliance circuits. In a typical household, each room or circuit may be protected by an MCB in the distribution board. The current ratings of MCBs usually range from a few amperes to around 100 amperes.

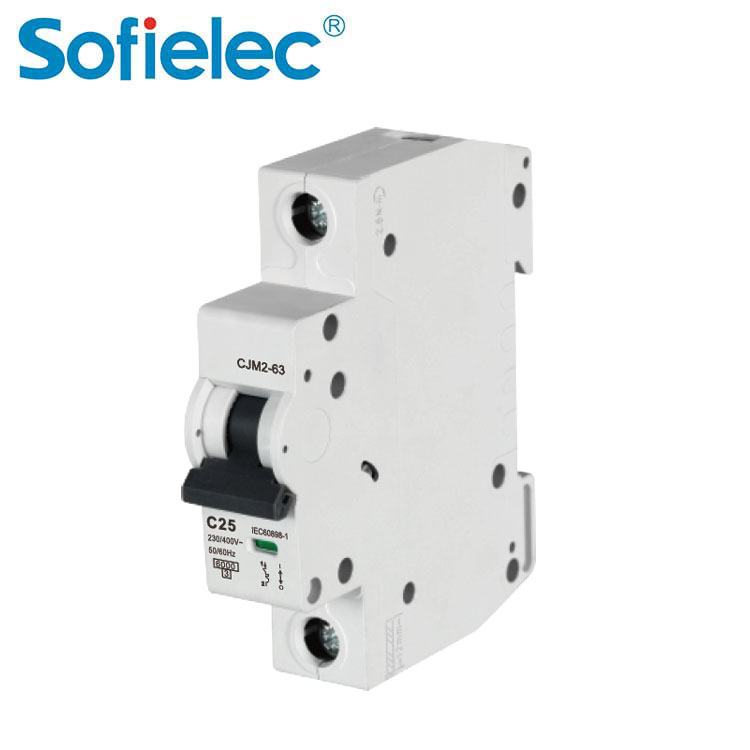

CJM2-63-1 1P 2P 3P 4P mini circuit breaker MCB for electrical
In conclusion, both MCCB and MCB are essential components in the electrical landscape. While MCCBs are the heavy - duty protectors for large - scale industrial and commercial applications, MCBs provide reliable protection for smaller, more domestic and light - commercial electrical setups. Understanding their functions and applications is crucial for anyone involved in electrical design, installation, or maintenance, as they are the first line of defense against electrical hazards, ensuring the safety and continuity of power in our electrical systems.
