ZHRV2-54T Voltage control relay

ZHRV2-54T Voltage control relay
ZHRV2-54T Voltage control relay

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Function
Categories Voltage Control Relay
Rated supply voltage AC220V
Rated supply frequency 50Hz/60Hz
Over- voltage action 0.1s
Under -voltage action 5V
Voltage measurement error ≤1%
Rated insulation voltage 415V
measurement accuracy 1%
IP Class IP 20
Delay error ±10%+0.1s
Altitude ≤2000m



Applications

Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection  of  over-voltage,  under  voltage, phase failure, phase sequence and phase unbalance. When the power  supply is abnormal, turn off power supply to protect the equipment.



Features

Built-in microprocessor, true RMS measurement, measurement accuracy ≤1%.knob setting, LED indicator shows working status.Use(magnetic latching)relay to achieve products low-power. DIN rail mounting.

Rated supply voltage AC220V
Rated working voltage range AC100V~ 400V
Rated supply frequency 50/60Hz
Over-voltage action 0.1s
Under-voltage action 120V
Voltage hysteresis value 5V
Voltage measurement error ≤1% (The setting range )
Delay error +10%+0.1s
measurement accuracy 1% RMS
Rated insulation voltage 415V
Short circuit protector type and maximum rating NT00-6A
IP Class IP20
Class of pollution II
Electrical Life

105

Mechanical life 106
Altitude ≤2000m
Allowable relative humidity ≤50%(40°C)(No condensation)
Contact Configuration capacity(A) 50A 63A 80A
Maximum load power 10kVA(50A) 13kVA(63A) 17kVA(80A)



Function Diagram

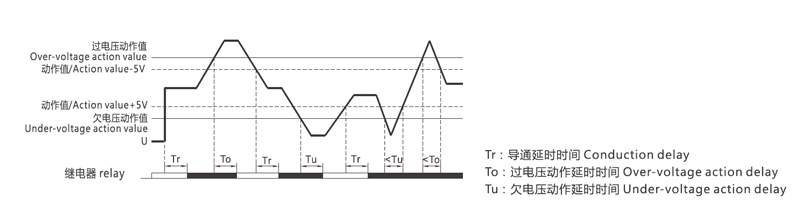

Function Diagram:Relay.Over-Voltage action value

Wiring Diagram

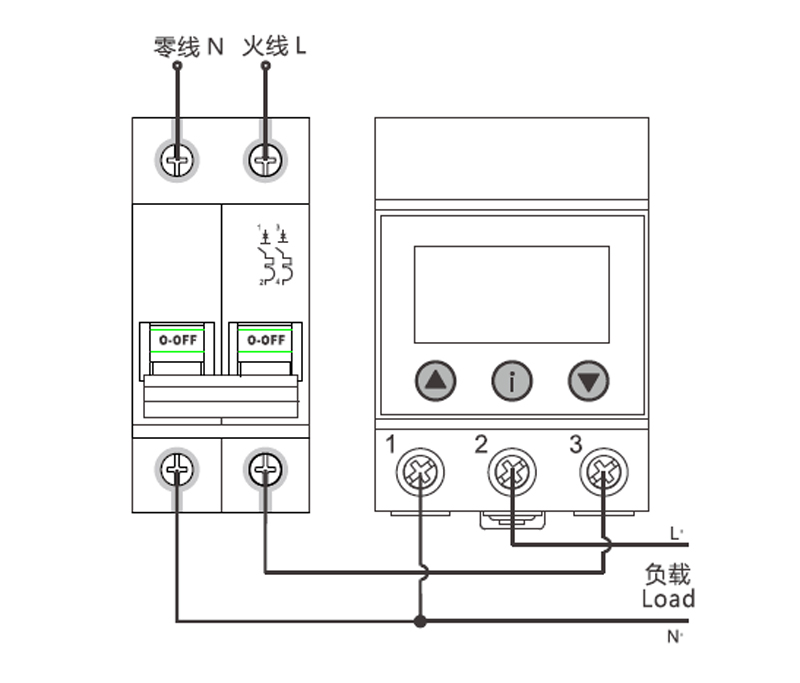

Wiring Diagram

Dimensions

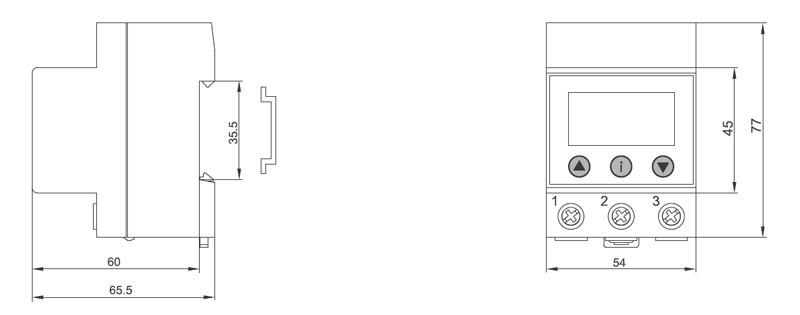

Dimensions
