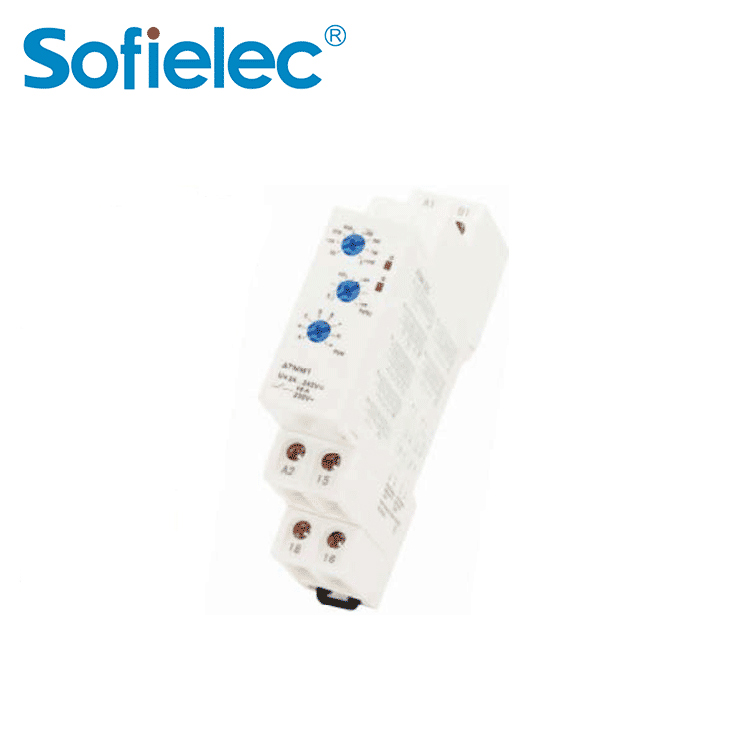

Categories | Time Relay |
Model | ATMM |
Supply Voltage | 24~ 240VAC/DC 50-60Hz |
Time setting | potentiometer |
Time Deviation | 5% mechanical setting |
Repeat Accuracy | 0.2% set value stability |
Consumption | AC0.7-3 VA, /DC0.5- 1.7W |
Supply Indication | Green Led |
Output Indication | Red Led |
Reset time | Max.200mS |
Operating temperature | -10~ +50 |
Mounting | 35 mm rail mounting |
Features
● 18mm wide
● Time setting from 0.05 Sec to 60 Sec Can be customized according to customer requirements

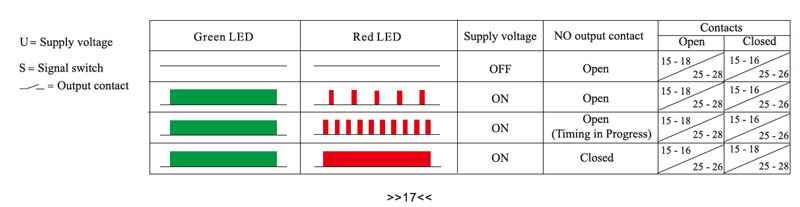

●Relay status is indicated by LED
●35 mm rail mounting
●Multi-voltage
●Multi-function

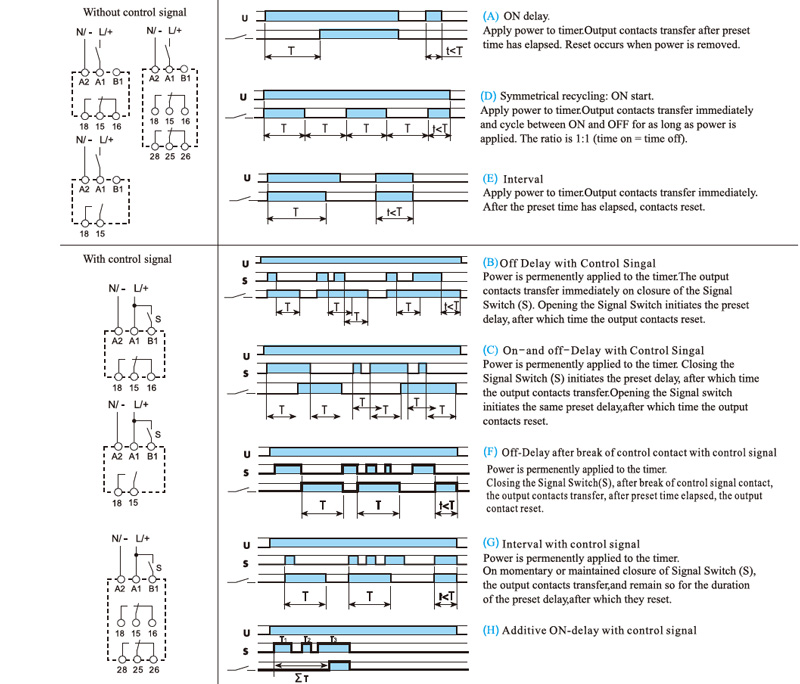

A: On-Delay
B: Off-Delay with control signal
C: On and Off-Delay with control signal
D: Symmetrical flasher (starting pulse on)
E: Interval
F: Off-Delay after break of control contact with control signal
G: Interval with control signal
H: On-Delay of control time with control signal
Function

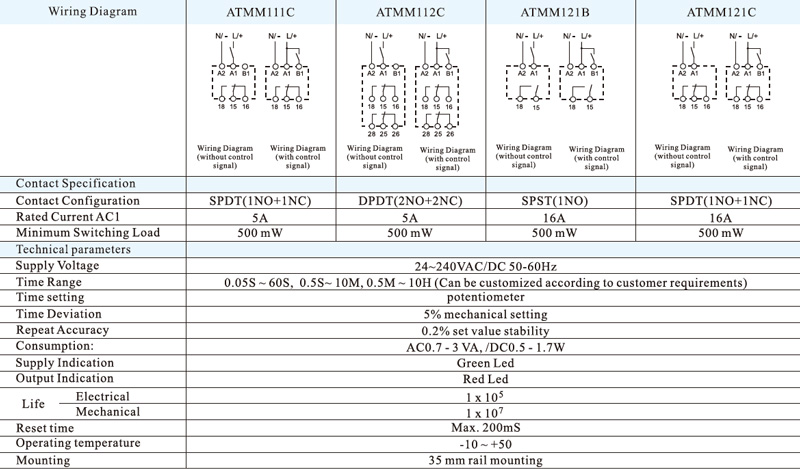

Technical date

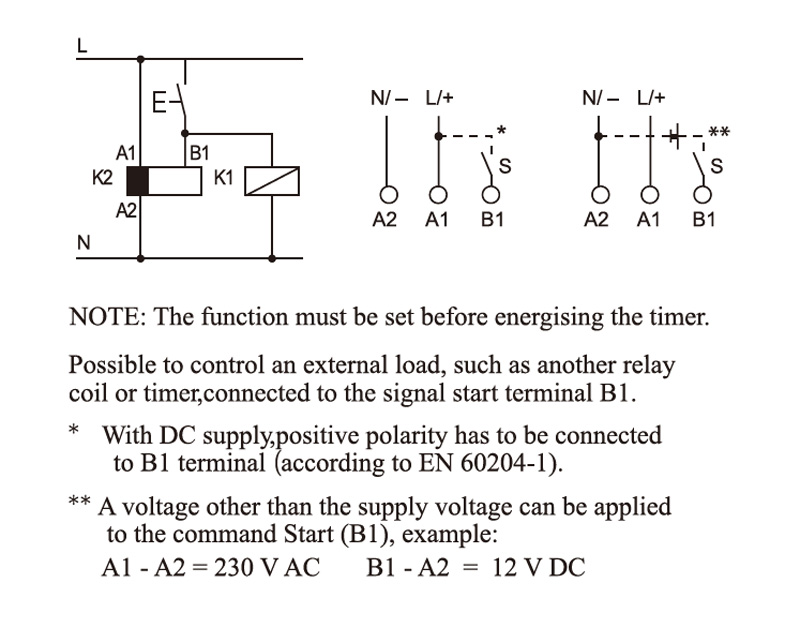

Wiring diagram

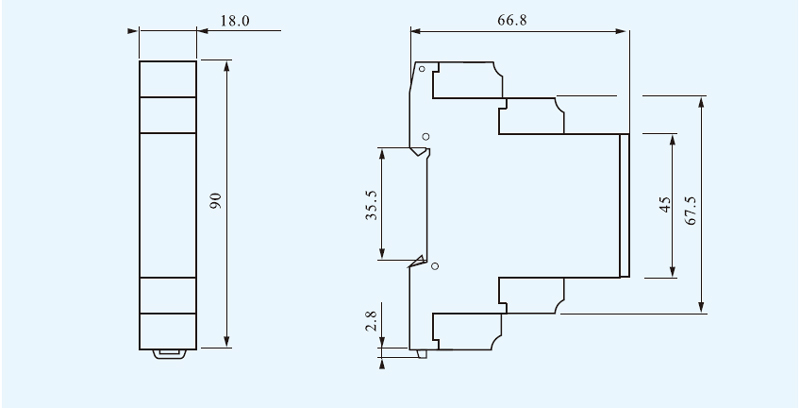

Dimensions
