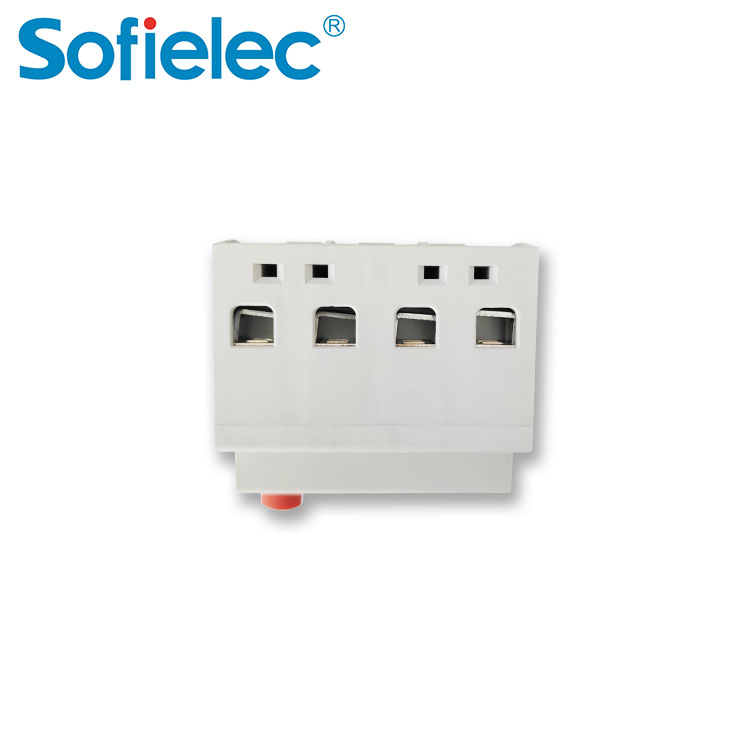

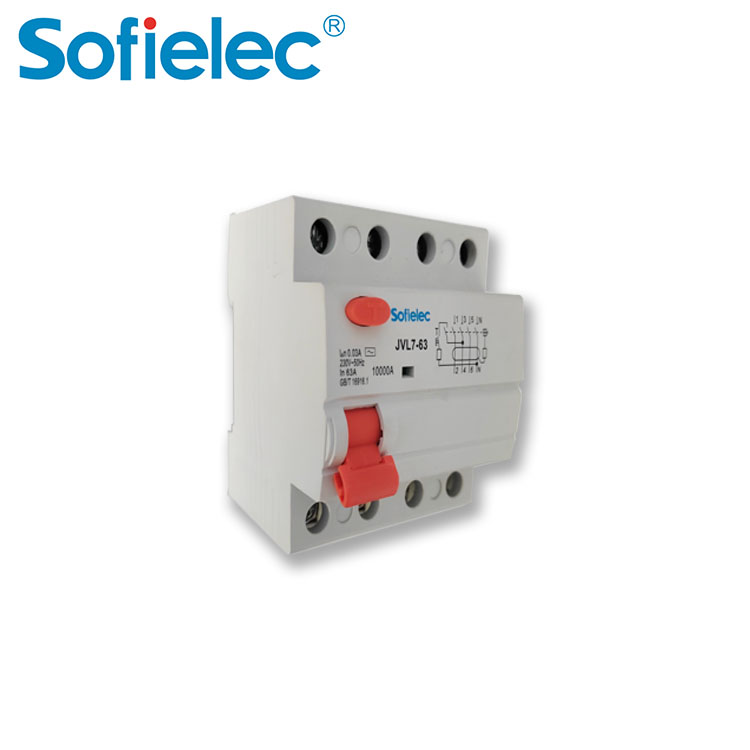

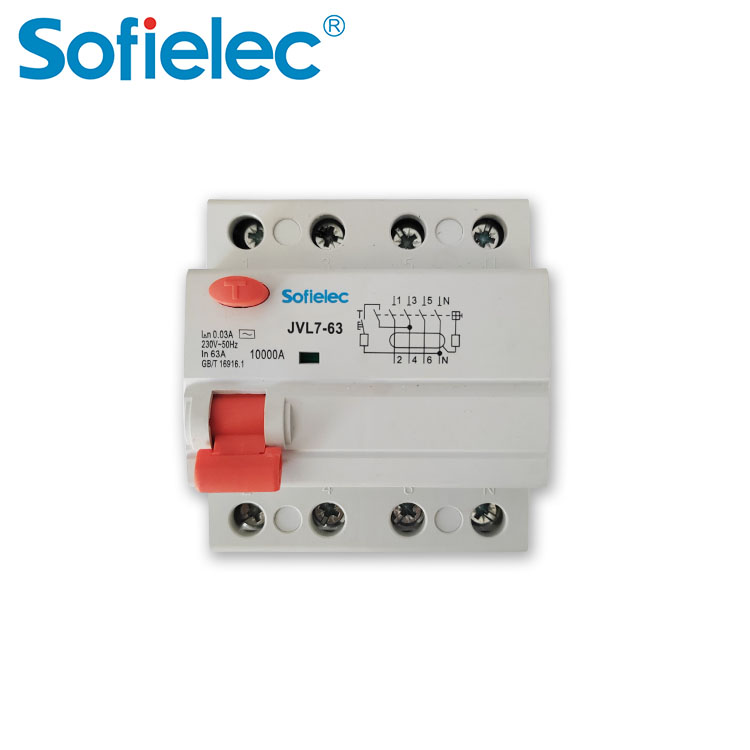

Leakage Circuit Breaker is a kind of circuit breaker used to protect the power system and equipment from electric leakage and short circuit. It can automatically open the circuit when there is a short circuit or excessive current, and effectively protect the power system and equipment from damage.
Electric Leakage Circuit Breaker Technical Parameter
■Executive standards: IEC61008, GB/T16916.1
■Type: Electromagnetic type
■Residual operating current characteristics: A, AC, S
■Number of poles: 1P+N, 3P+N (N on the left and N on the right)
■Rated current: 25, 32, 40, 63A
■Rated voltage: AC240/415
■Rated frequency: 50/60Hz
■Rated residual operating current (I △ n) A: 0.03, 0.1, 0.3
■Rated residual non operating current: 0.5I △ n~I △ n
■Wiring height: 19mm
■Mechanical and electrical life: 4000 times
■Terminal wiring cross-sectional area: 25mm ² And below wires
■Wiring terminals: screw terminals
■Wiring method: column type wiring method
■Tightening torque: 2N. m
■Rated breaking capacity: 6000A
Electric Leakage Circuit Breaker Installation
■35.5mm guide rail installation
■Vertical installation
■Shell protection level: IP20

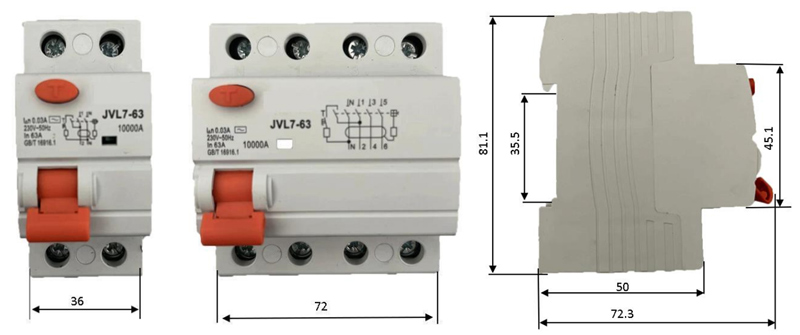

Electric Leakage Circuit Breaker Appearance and installation dimensions
