Categories | Plug |
Model | 56AI320 |
Current | 10A 20A 32A 40A 50A |
Pole | 3P 4P 5P |
Dimension | a 200 b 163 c 101 |
Description
Parameter

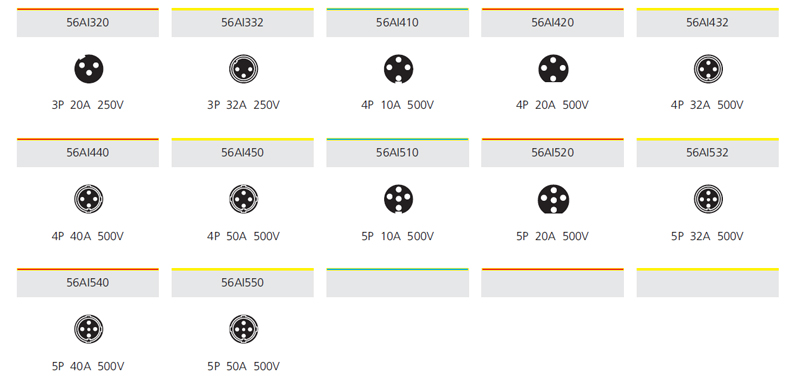

Current(A) | 10 | 20 | 32 | 40 | 50 | ||||||||
Pole(P) | 4 | 5 | 3 | 4 | 5 | 3 | 4 | 5 | 4 | 5 | 4 | 5 | |
Dimension(mm) | a | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
b | 163 | 163 | 163 | 163 | 163 | 163 | 163 | 163 | 163 | 163 | 163 | 163 | |
c | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 |

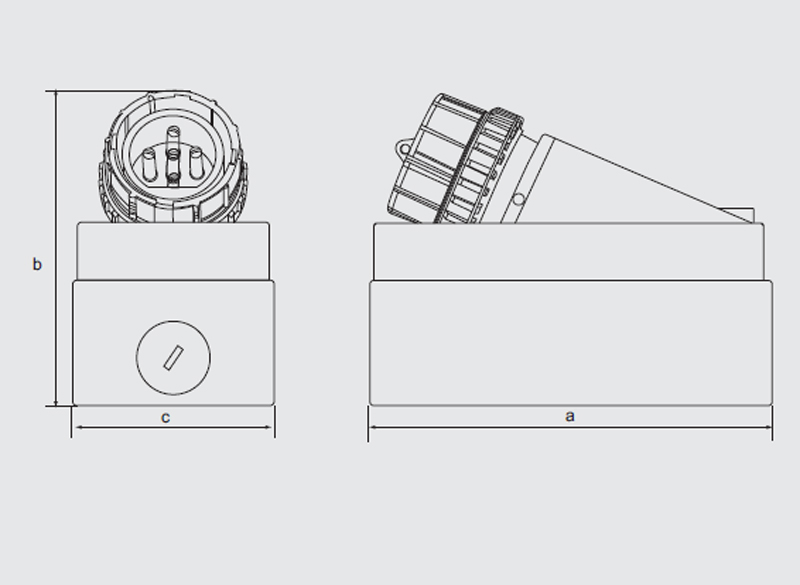

Dimension
Standard
In line with Australian National Standard AS/NZS 3123:2005
