Function
Categories | Motor Protector Relay |
Rated control supply voltage | AC380V. AC220V. 50Hz/60Hz |
Rated insulation voltage | AC690v |
Contact capacity | Ith:5A;AC-15;Ue/Ie 380V/0.95A 240V/1.5A |
Current measurement accuracy | ≤2% |
Number of poles | 3P |
IP Class | IP20 |
Use category | AC-15 |
Altitude | ≤2000m |
Coordination type | 2 |
Power consumption | ≤1.5VA |
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Features
Built-in microprocessor,current measurement accuracy ≤2%.Konb setting,LED indicator show working statud.With phase failure,overload,unbalance,syall protecting,four optional trip classes.No-load start,protection of any phase loss or overload.No contact protection.
Rated supply voltage | AC380V、AC220V 50Hz/60Hz |
Current measurement accuracy | ≤2% |
Number of poles | 3P |
Rated insulation voltage | AC690V |
IP Class | IP20 |
Coordination type | 2 |
Contact capacity | Ith: 5A; AC-15 : Ue/le 380V/0.95A 240V/1.5A |
Use category | AC-15 |
Electrical life |
105 |
Mechanical life |
106 |
Altitude | ≤2000m |
Allowable relative humidity | ≤50%(40°C)(No condensation) |
Power consumption | ≤1 5VA |
Insallation | Screw mounting |

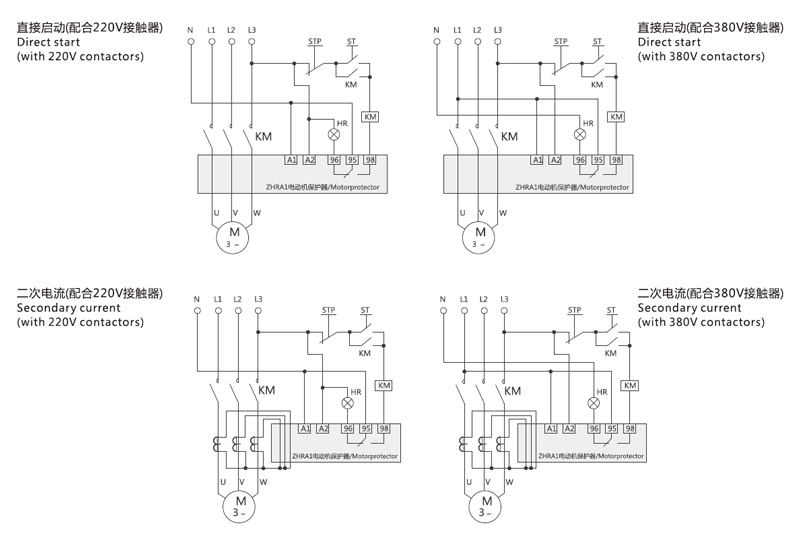

Wiring Diagram

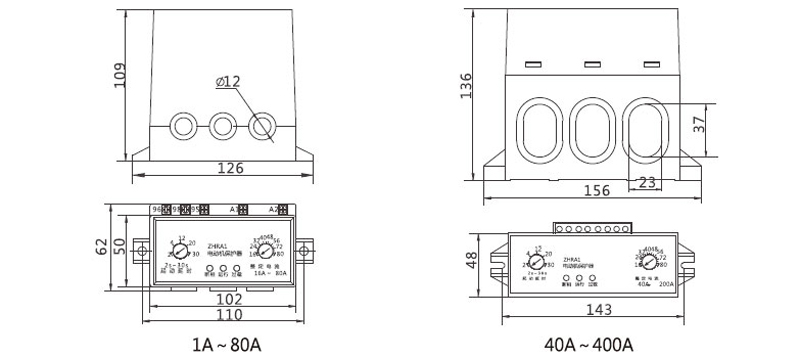

Dimensions
