- Current Rating: 100A
- Metallic Compact Consumer Unit
- IP3X Safety
- Multiple cable entry knockouts
- Rigid, Raised and Offset DIN rail design
- Earth and neutral blocks fixed as standard
- Insulated comb busbar & neutral cable included
- All metal parts are protected of grounding
- Compliance to BS/EN 61439-3
Parts No. | Description | usable Ways |
CJDB-4W | 4Way metal distribution box | 4 |
CJDB-6W | 6Way metal distribution box | 6 |
CJDB-8W | 8Way metal distribution box | 8 |
CJDB-10W | 10Way metal distribution box | 10 |
CJDB-12W | 12Way metal distribution box | 12 |
CJDB-14W | 14Way metal distribution box | 14 |
CJDB-16W | 16Way metal distribution box | 16 |
CJDB-18W | 18Way metal distribution box | 18 |
CJDB-20W | 20Way metal distribution box | 20 |
CJDB-22W | 22Way metal distribution box | 22 |
Technical Details
Parts No. | Width(mm) | Hight(mm) | Depth(mm) | Carton Size(mm) | Qty/CTN |
CJDB-4W | 130 | 240 | 114 | 490X280X262 | 8 |
CJDB-6W | 160 | 240 | 114 | 490X340X262 | 8 |
CJDB-8W | 232 | 240 | 114 | 490X367X262 | 6 |
CJDB-10W | 232 | 240 | 114 | 490X367X262 | 6 |
CJDB-12W | 304 | 240 | 114 | 490X320X262 | 4 |
CJDB-14W | 304 | 240 | 114 | 490X320X262 | 4 |
CJDB-16W | 376 | 240 | 114 | 490X391X262 | 4 |
CJDB-18W | 376 | 240 | 114 | 490X391X262 | 4 |
CJDB-20W | 448 | 240 | 114 | 370X465X262 | 3 |
CJDB-22W | 448 | 240 | 114 | 370X465X262 | 3 |

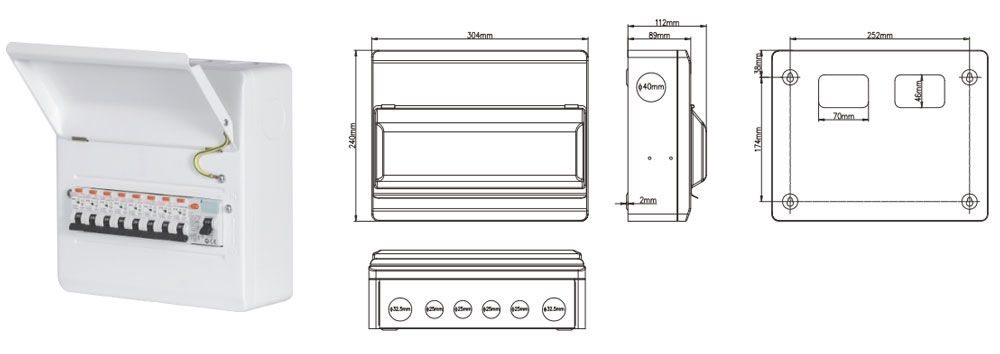

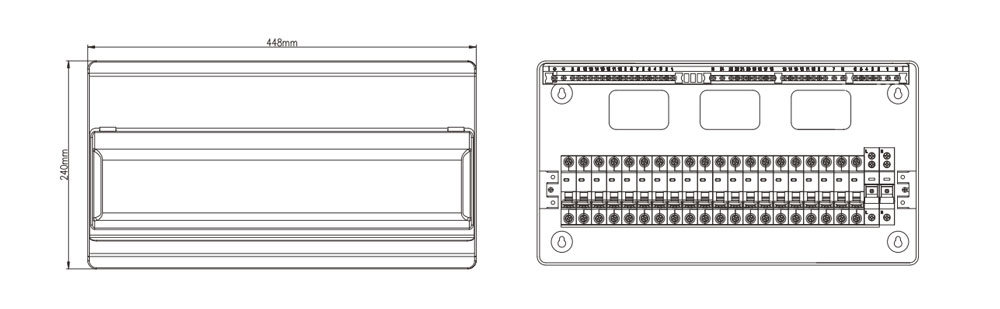

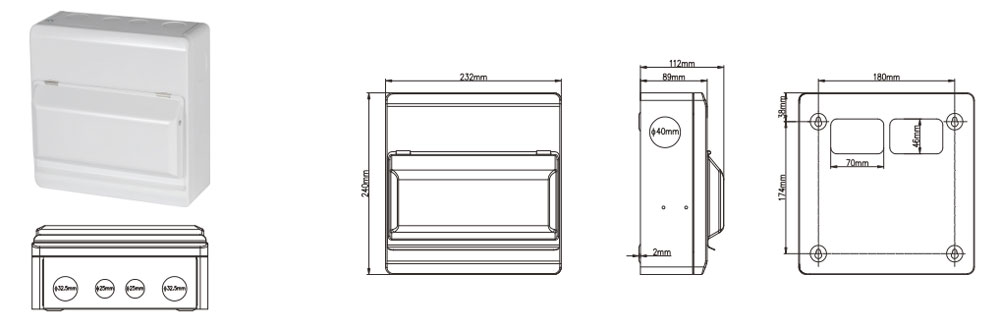

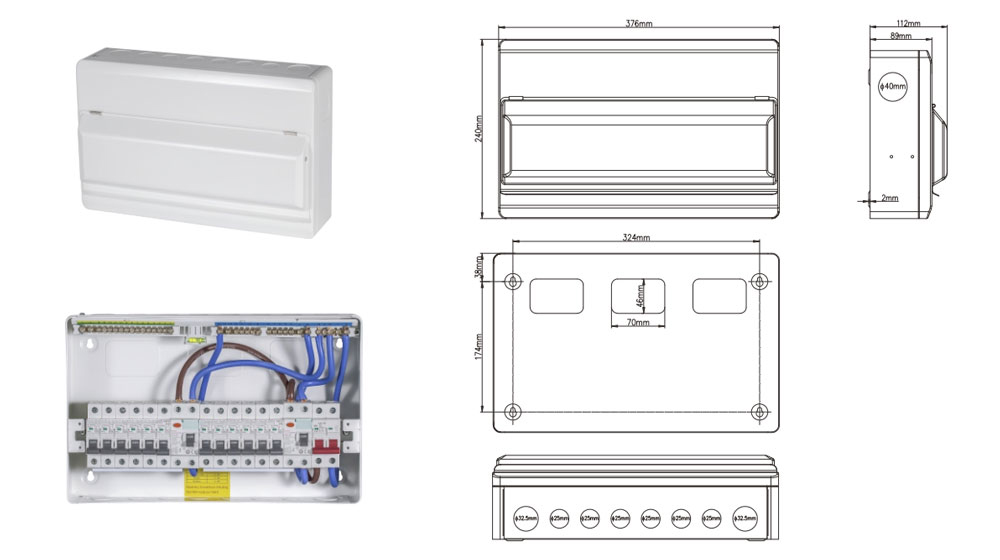

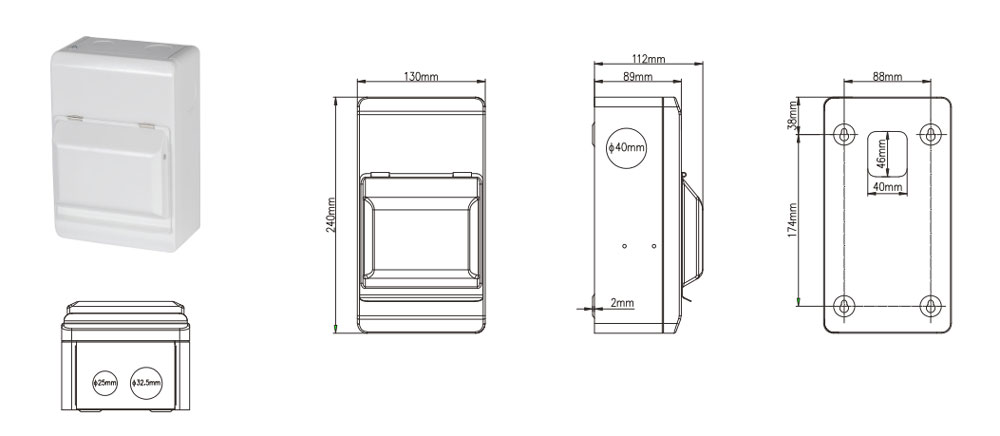

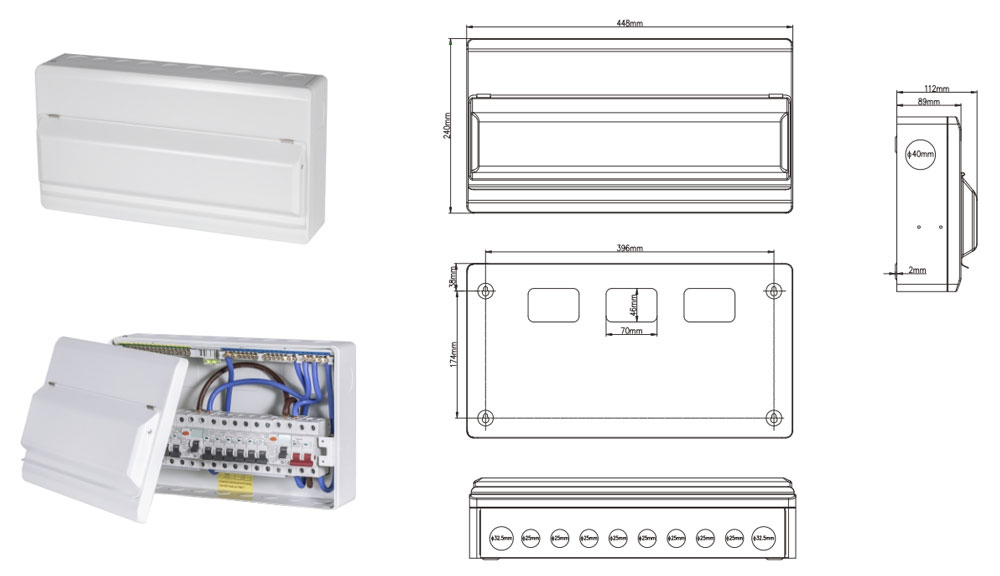

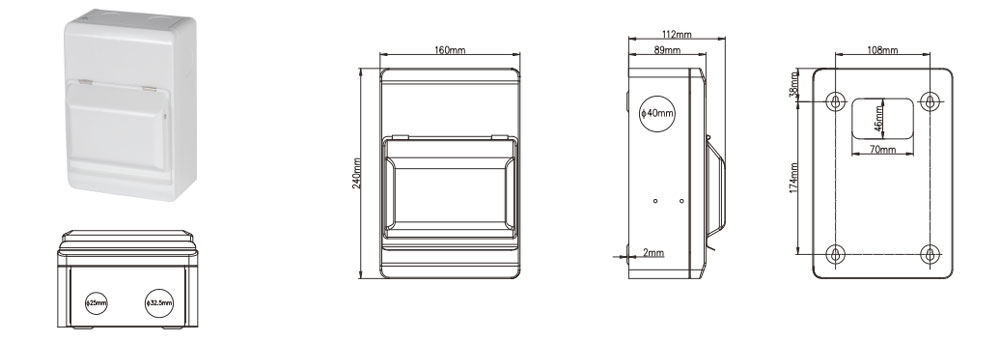

Parts No. | Width(mm) | Hight(mm) | Depth(mm) | Install Hole Sizes(mm) | |
CJDB-4W | 130 | 240 | 114 | 88 | 174 |
Parts No. | Width (mm) | Hight (mm) | Depth (mm) | Install Hole Sizes(mm) | |
CJDB-6W | 160 | 240 | 114 | 108 | 174 |
Parts No. | Width (mm) | Hight (mm) | Depth (mm) | Install Hole Sizes(mm) | |
CJDB-8W,10W | 232 | 240 | 114 | 180 | 174 |
Parts No. | Width (mm) | Hight (mm) | Depth (mm) | Install Hole Sizes(mm) | |
CJDB-12W,14W | 304 | 240 | 114 | 252 | 174 |
Parts No. | Width (mm) | Hight (mm) | Depth (mm) | Install Hole Sizes(mm) | |
CJDB-16W,18W | 376 | 240 | 114 | 324 | 174 |
Parts No. | Width (mm) | Hight (mm) | Depth (mm) | Install Hole Sizes(mm) | |
CJDB-20W,22W | 448 | 240 | 114 | 396 | 174 |
