| Categories | FLOAT SWITCH |
| Model | HT-M15-11 |
| Rated voltage | AC110/220V |
| Max.Current | AC 16(4)A |
| Frequency | 50/60Hz |
| Max.Using temperature | 60℃ |
| Protection Degree | IP68 |
TECHNICAL DATA
1.Rated voltage :AC 110/220V
2.Max.Current:AC16(4)A
3.Frequency:50/60Hz
4.Max.Using Temperature:60℃
5.Protection Degree:IP68

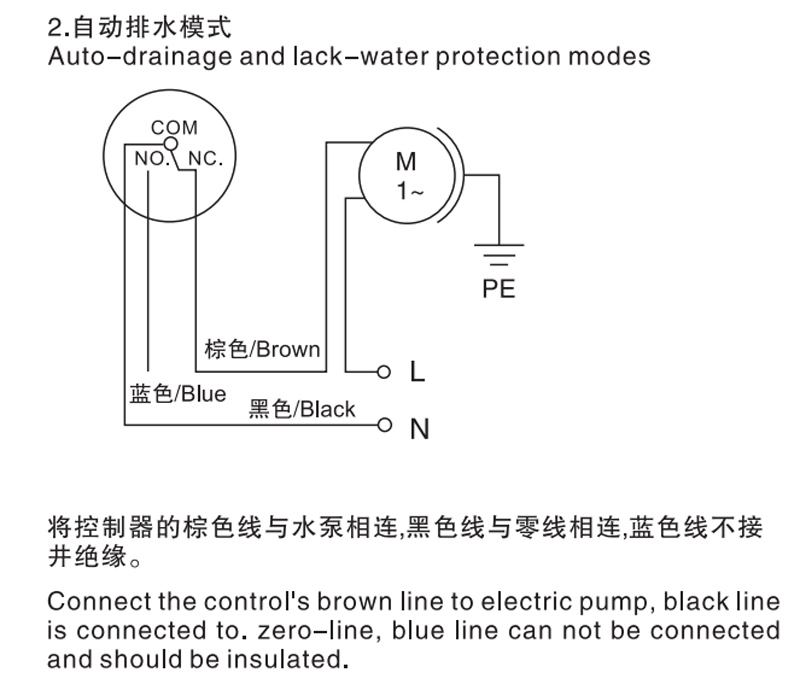

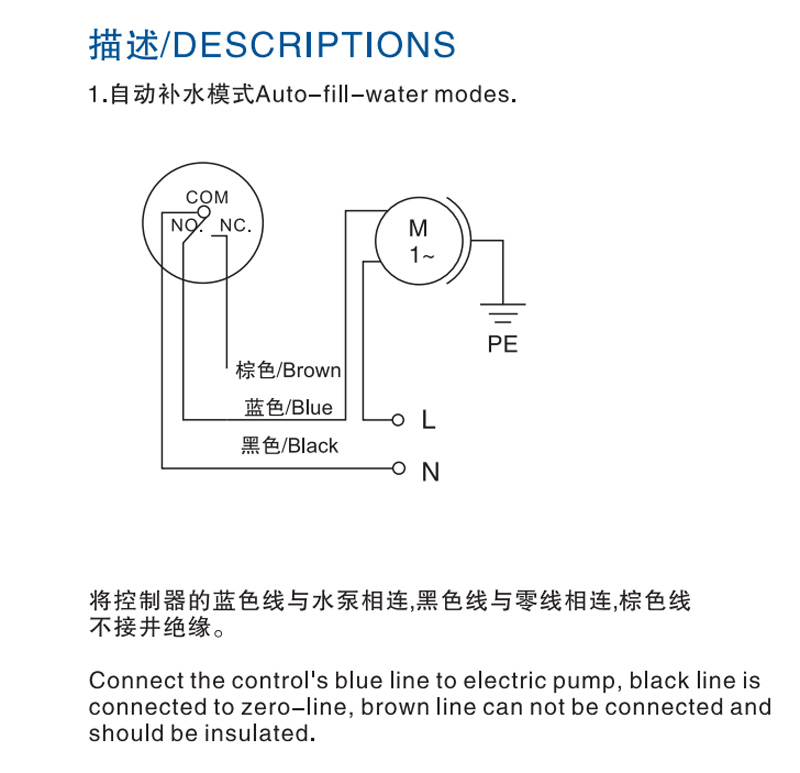

DESCRIPTIONS
