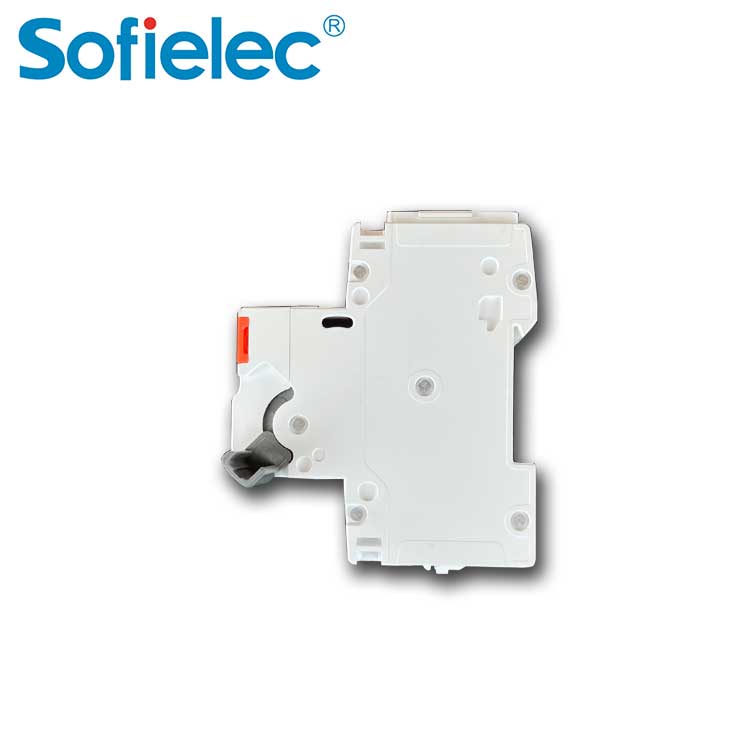

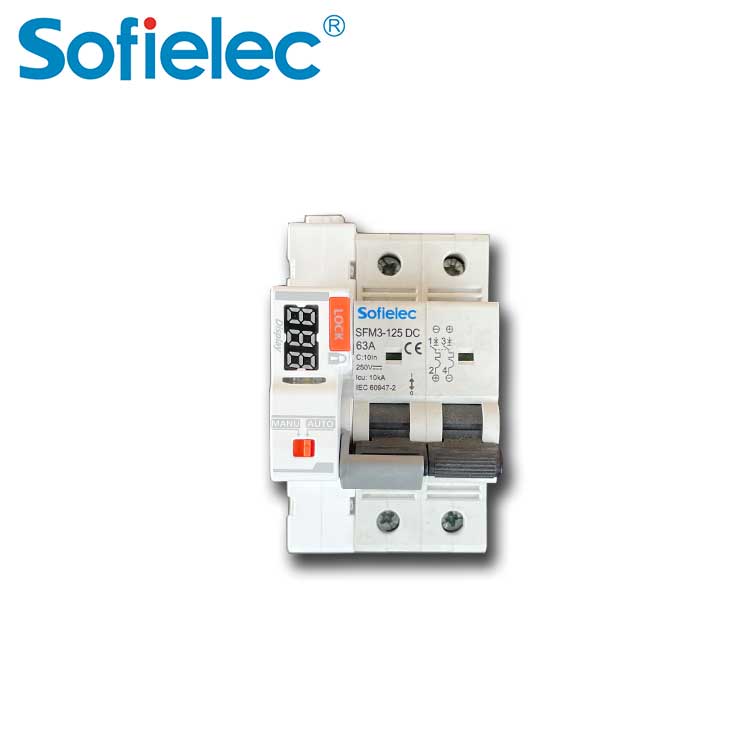

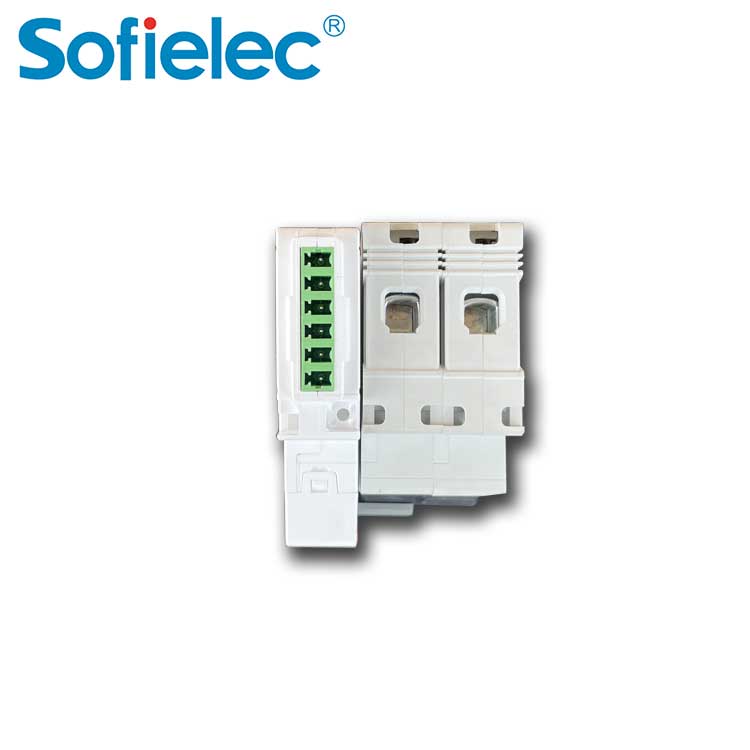

Categories | auto recloser |
Model | X101 series |
Ambient temperature | -25℃~+55℃ |
Storage temperature | 40℃~+70℃ |
Action time | Opening≤1S, Closing≤2S |
Mechanical Endurance | ~20000 cycles |
Electrical Endurance | ≥10000 cycles |
Protection Degree | IP20 |
Rated Current | 6A~125A |
Standby power consumption | <1.5VA |
Ambient temperature | -25℃~+55℃ | √ | √ | Opening and closing times | Record storage of opening and closing times | √ | √ |
Storage temperature | -40℃~+70℃ | √ | √ | Communic ation Interface | RS485.MODBUS agreement | Optional | Optional |
Action time | Opening≤1S.Closing≤2S | √ | √ | Operating mode | Automatic/manual/mechanical padlock | √ | √ |
Mechanical Endurance | ~20000 cycles | √ | √ | Anti-surge ability | 10KV Does not damage it self | √ | √ |
Electrical Endurance | ≥10000cycles | √ | √ | Product Size | (1+N)*18mm ,N=Matching MCB Pole Number | √ | √ |
Protection Degree | IP20 | √ | √ | Digital display | Display of working voltage,display of opening and closing times | Optional | Optional |
Rated Voltage | ////// | DC48V | AV220V | Timing control | Accuracy 1S | Optional | Optional |
Rated Current | 6A~125A | √ | √ | Matching MCSs | It is recommended to use Schneider A9 series.Sofielec SFM3-125 series | ||
Over-current/short circuit protection | Depends on the characteristics of the matching circuit breaker | √ | √ | Scheicer/Chint/Sofielec | A9 AC/DC series/NB1 series | Optional | Optional |
Standby power consumption | <1.5VA | sofielec | SFM3-125,JVM16-63 | Optional | Optional | ||
Indicator light | Padlock (manual mode): Invalid closing and opening. the orange light is always on and unlocked(Automatic mode): The red light flashes for 100ms when closing or opening is invalid(The power-on reset position fails to return or the opening and closing status detection fails)Opening: the red light is always onRed light flashes for 500ms (pre-coincidence state)Clasing: the green light is always onClosing: the green light flashes for 500ms (auto-reclosing is stable) | √ | √ | Auto-reclosing (RS485 can be turned off) | Auto-reclosing action time The first time interval is 10 seconds,the second time interval is 60 seconds, and the third time interval is 300 seconds. After three times it fails to reclose, it will not reclose. After the automatic closing is stable for 1 minuter,it will return to the first closing logic. | √ | √ |
